Networking & Communications

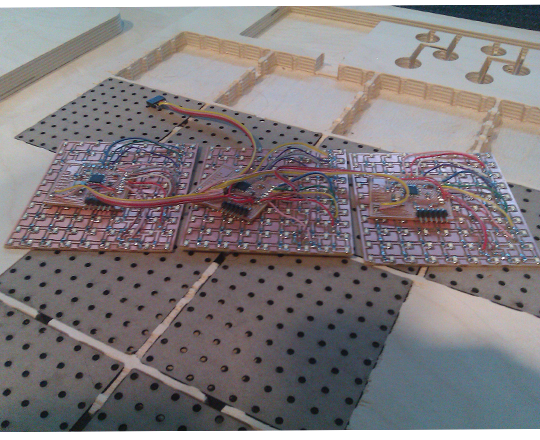

For this week I spent most of my time continuing to progress my final project which uses I2C to communicate between multiple nodes. I don't have any update videos of the this bus operating but the basic setup can be seen on the week 10 page.

Fab Radio

I attempted to make the hello radio example board but was only sucessful in milling and stuffing the board and have as of yet been able to program it. The board is currently shorting but I will attempt to debug/resolder when I get the time.

Modela Note

Check that the Z axis is not at the end of it's travel before trying to cut out the board...

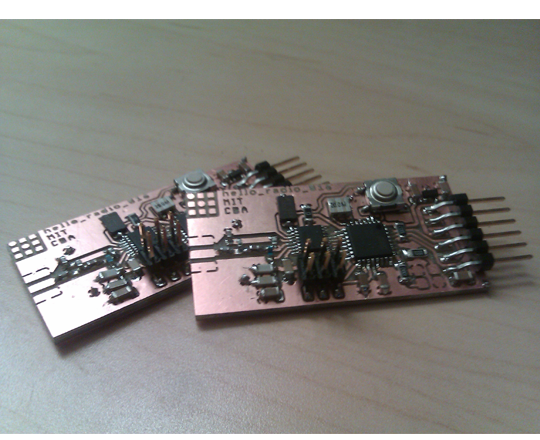

Hello Radio PCB


Hello Radio PCB
